by: Iskra
Product Code: SPWIS172
Availability: Next Day Special Order
The Iskra ME172 is one of the most versatile MID approved single phase meters on the market and can be configured to show a number of different electrical parameters to suit a wide variety of applications. These include billing for consumption, measuring imported and exported energy on renewable installations, logging dual rate readings for tariff’s such as Economy 7 as well as measuring most of the common electrical parameters such as Energy (kWh), Power (W), Current (I) & Voltage (V) to name just a few.

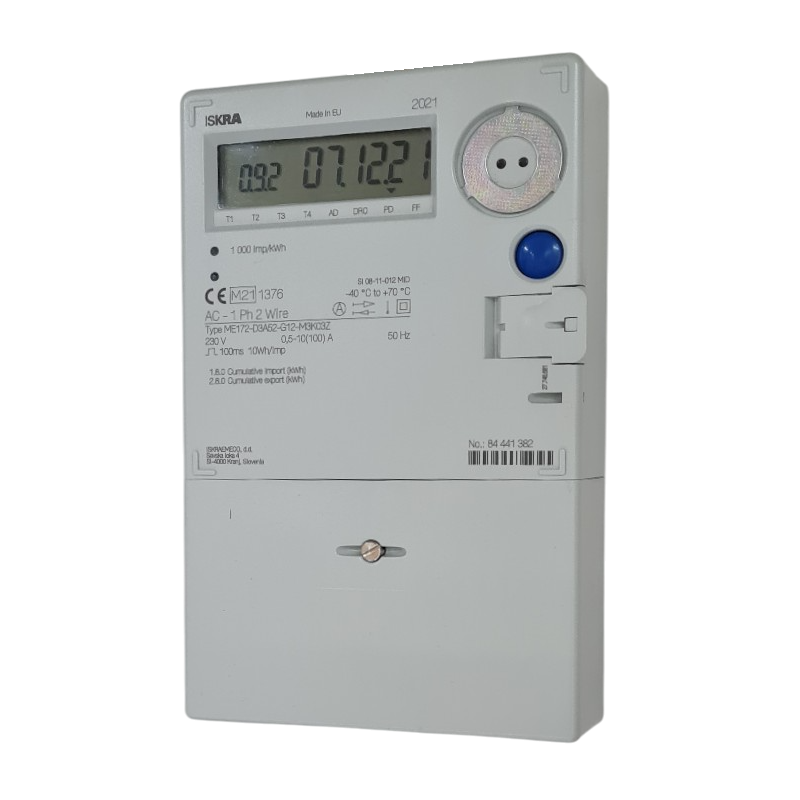

This Iskra ME172 is a 100A direct connect single phase meter manufactured by Iskra, one of Europe’s largest electric meter manufacturers. This class A, (accurate to within 2%), surface mounted meter is MID approved making it suitable for billing applications and includes a pulse output and an RS485 connection. It also logs recorded data internally so in the event of a fault, such as a screen failure, readings can still be retrieved.
We configure the auto scroll display, (viewable without having to press any buttons), on the ME172 for different applications as listed below. This ensures the key information required is available without having to check instructions, press buttons etc.
| SPW Part Code | Description | Notes |
| SPWIS172 | Reading Meter | Displays Energy (kWh) Consumed |
| SPWIS172D | Dual Tariff | Displays Energy (kWh) Consumed on Tariff 1, Tariff 2 & Total |
| SPWIS172I | Import & Export | Displays Imported & Exported Energy (kWh) |
| SPWIS172B | Billing | Records Energy (kWh) consumed on the 1st of each month at 0:00 over a period of 9 months |
All ME172’s have the following parameters available in the manual scroll display, (accessible using the blue button):
| OBIS Code | Description |
| 11.7.0 | Instantaneous Current (I) |
| 12.7.0 | Voltage (V) |
| 13.7.0 | Instantaneous Power Factor |
| 14.7.0 | Frequency |
| 1.7.0 | A+ All Phases Instantaneous Power (kW) |
| 1.8.0 | A+ All Phases Energy, Total (kWh) |
We can also create custom configurations for the ME172 displaying specific parameters or custom tariff times for example. Simply get in touch with our friendly sales team on 01803 295430 or sales@spwales.com and they'll be happy to discuss your requirements.
| Meter Type | Single Phase |
| Fitting Type | Wall Mounted |
| Max Current (amps) | 100 |
| MID Approved | Yes |
| Smart | No |
| Input Type | Direct Connect |
| Output Type | Pulse |
| Tariffs | Multiple |
| Import / Export | Import & Export |
| Accuracy Class | A (Cl. 2) |
| Max. Cable Size | 25mm² |
| Availability | Next Day |
| Brand | Iskra |
| Country of Manufacture | Slovenia |
 | Summary Sheet |
| Manufacturers Datasheet |
| Manufacturers Manual |
| SPWIS172 User Manual |
| SPWIS172D User Manual |
| SPWIS172I User Manual |
| SPWIS172B User Manual |
This Iskra ME172 is a 100A direct connect single phase meter manufactured by Iskra, one of Europe’s largest electric meter manufacturers. This class A, (accurate to within 2%), surface mounted meter is MID approved making it suitable for billing applications and includes a pulse output and an RS485 connection. It also logs recorded data internally so in the event of a fault, such as a screen failure, readings can still be retrieved.
We configure the auto scroll display, (viewable without having to press any buttons), on the ME172 for different applications as listed below. This ensures the key information required is available without having to check instructions, press buttons etc.
| SPW Part Code | Description | Notes |
| SPWIS172 | Reading Meter | Displays Energy (kWh) Consumed |
| SPWIS172D | Dual Tariff | Displays Energy (kWh) Consumed on Tariff 1, Tariff 2 & Total |
| SPWIS172I | Import & Export | Displays Imported & Exported Energy (kWh) |
| SPWIS172B | Billing | Records Energy (kWh) consumed on the 1st of each month at 0:00 over a period of 9 months |
All ME172’s have the following parameters available in the manual scroll display, (accessible using the blue button):
| OBIS Code | Description |
| 11.7.0 | Instantaneous Current (I) |
| 12.7.0 | Voltage (V) |
| 13.7.0 | Instantaneous Power Factor |
| 14.7.0 | Frequency |
| 1.7.0 | A+ All Phases Instantaneous Power (kW) |
| 1.8.0 | A+ All Phases Energy, Total (kWh) |
We can also create custom configurations for the ME172 displaying specific parameters or custom tariff times for example. Simply get in touch with our friendly sales team on 01803 295430 or sales@spwales.com and they'll be happy to discuss your requirements.
| Meter Type | Single Phase |
| Fitting Type | Wall Mounted |
| Max Current (amps) | 100 |
| MID Approved | Yes |
| Smart | No |
| Input Type | Direct Connect |
| Output Type | Pulse |
| Tariffs | Multiple |
| Import / Export | Import & Export |
| Accuracy Class | A (Cl. 2) |
| Max. Cable Size | 25mm² |
| Availability | Next Day |
| Brand | Iskra |
| Country of Manufacture | Slovenia |
