  • Aspar - Mini Modbus 4DI-M

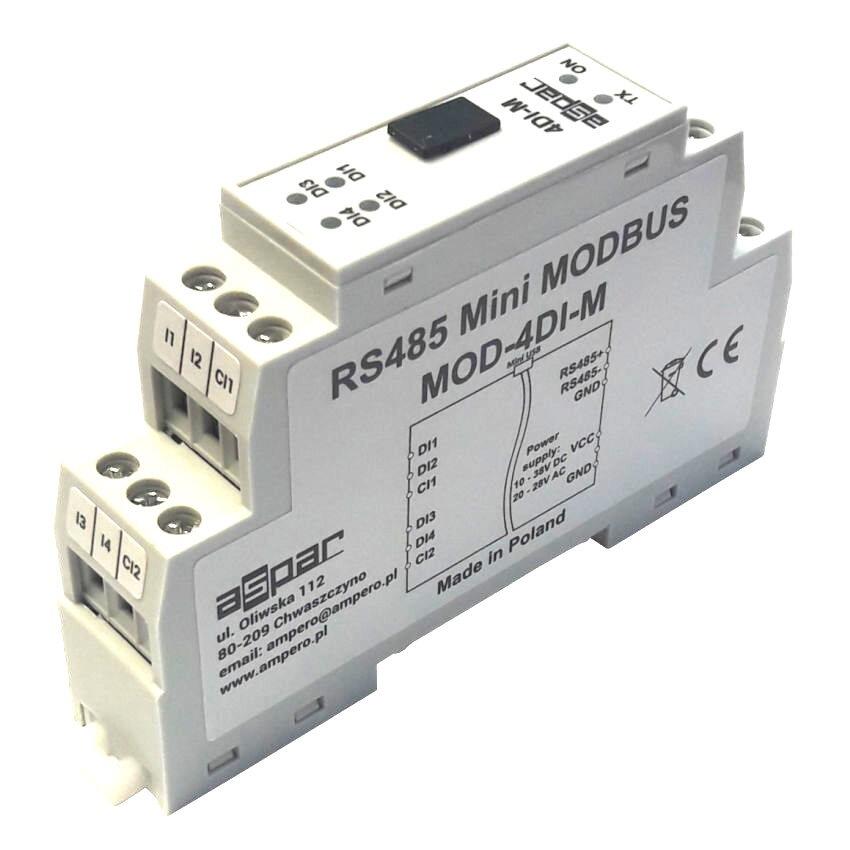

Aspar - Mini Modbus 4DI-M
Aspar - Mini Modbus 4DI-M
Aspar - Mini Modbus 4DI-M - Dimensions

Aspar - Mini Modbus 4DI-M

Product Code: MAAS4DI

Availability: Next Day Special Order

Download Summary Sheet

Quick overview

This device is a pulse to Modbus converter.  It is used to convert up to four pulse inputs from devices (such as water and gas meters) to a Modbus output so that they can be read through the Modbus network.  The MODBUS-Mini MOD-4DI offers a compact and cost-effective I/O solution. It features four opto-isolated digital inputs and is ideal for reliable signal interfacing in demanding environments.

Each input supports pulse counting, with values securely stored in non-volatile memory to ensure data retention even after power loss.  The device can output both Modbus ASCII and RTU protocols. Configuration and programming is simple and efficient; it is done through Aspar's free-to-download software and a USB connection to the device.


Quantity:
£0.00 £172.62

inc VAT

ADD TO FAVOURITES

REQUEST A QUOTATION
  • 4 opto-isolated digital inputs
  • closed contact or digital input
  • logic low - 0-3V, logic high 6-36V
  • 4 configurable 32-bit counters - timers
  • 1 kHz max count rate
  • stored in non-volatile memory - keeps the count value after a power failure
  • 2 quad encoder inputs
  • RS485 - Modbus settavble to ASCII or RTU
  • Baud rate from 2400 to 115200
  • USB programming port - free software
  • Supply voltage: 10-36 VDC; 20-28VAC
  • Supply Current: 62 mA @ 12V / 35 mA @ 24V
  • Up to 128 modules on RS485 network
  • DIN rail mount
  • Dimensions: 90mm x 56mm x 17mm
  • Operating Temperature: -20 °C - +65°C
