  • Eastron - ESCT 3-in-1 Easy Click Current Transformers
Eastron - ESCT-RJ335
Eastron - ESCT-RJ335
Eastron - ESCT-RJ345
Eastron - ESCT-RJ370

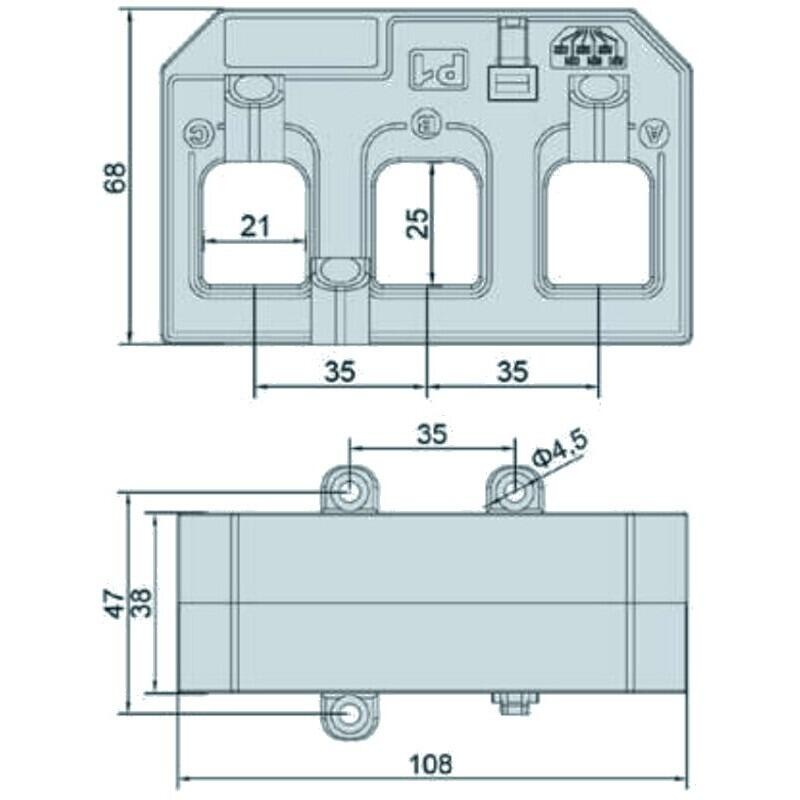

Eastron - ESCT-RJ335 - Dimensions
Eastron - ESCT-RJ345 - Dimensions
Eastron - ESCT-RJ370 - Dimensions

Eastron - ESCT 3-in-1 Easy Click Current Transformers

by: Eastron

Product Code: CT###TP##MA

Availability: Next Day Special Order

Download Summary Sheet
View Video

Quick overview

The Easy-Click range from Eastron has been designed with the “plug and play” concept in mind enabling a reliable, fast and error free installation. The range features a selection of 3-in-1 CT’s, each supplied with a 1m cable with RJ12 connections that simply connect from the CT and plug straight into the meter.

The ESCT range of CT’s from Eastron are design for use the with Eastron SDM630MCT-ML DIN rail meter and the Eastron X96-1 panel mount meter. They’re suitable for primary ranges from 60A-800A and are available in three case sizes to suit most installations. They come complete with a 1m RJ12 cable for fast installation and feature tamper proof clip on the RJ12 connection.


Optional Extras


Quantity:
From: £0.00 From: £41.40

inc VAT

ADD TO FAVOURITES

REQUEST A QUOTATION
CT TypeSolid Core
Lead Length1m
Certification
CE
SPW Part Code
Ratio
Aperture
Burden @ Class 0.5Burden @ Class 1
CT60TP35MA
60/100mA3 @ 21 x 25mm
0.25VA0.25VA
CT100TP35MA
100/100mA
3 @ 21 x 25mm
0.25VA0.5VA
CT150TP35MA
150/100mA
3 @ 21 x 25mm
0.25VA0.5VA
CT200TP35MA
200/100mA
3 @ 21 x 25mm
0.25VA0.5VA
CT250TP35MA
250/100mA
3 @ 21 x 25mm
0.25VA0.5VA
CT400TP45MA
400/100mA
3 @ 32 x 27mm
0.25VA0.5VA
CT630TP45MA
630/100mA
3 @ 32 x 27mm
0.25VA0.5VA
CT800TP70MA
800/100mA
3 @ 52 x 40mm0.25VA5VA
