Eastron - SDM120

by: Eastron

Product Code: SPDEA120

Availability: Next Day Special Order

Download Summary Sheet

Quick overview

The Eastron SDM120 is a single phase, 45A DIN Rail meter, perfect for low load applications such as monitoring heat pump consumption for RHI or caravan sites.

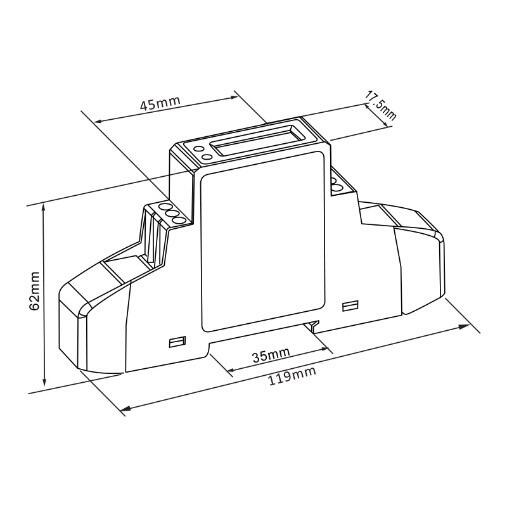

At just one module wide, this compact meter is MID approved, making it suitable for billing applications and has Class B accuracy, (equivalent to Class 1).

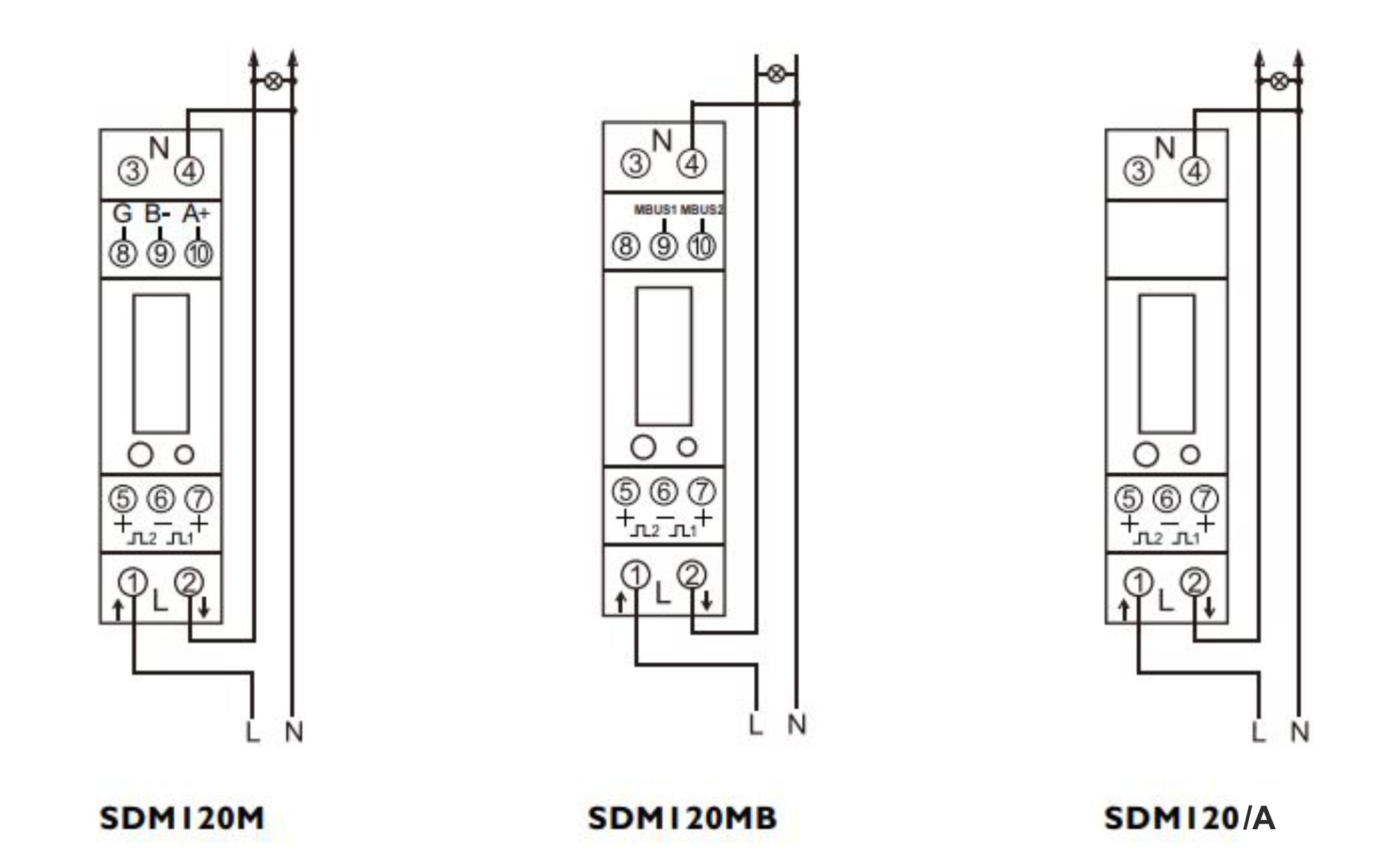

While the SDM120 & SDM120A models only display Active Energy, (kWh), the SDM120M & SDM120MB display Active Energy (kWh), Active Power, (W), Voltage (V), Current (I), Power Factor and Frequency.

Pulse, Modbus or Mbus outputs are available, ideal for integration into a BMS system or a metering gateway, and SDM120M & SDM120MB display both imported & exported energy.



Optional Extras


Meter TypeSingle Phase
Fitting TypeDIN Rail
Max Current (amps)45
MID ApprovedYes
Input TypeDirect Connect
Output TypePulse / Modbus / Mbus *
SmartNo
TariffsSingle
Import / ExportImport & Export *
Accuracy class
B (Cl. 1)
Max. Cable Size
16mm
Module Width1
AvailabilityNext Day
BrandEastron
Country of ManufactureChina
* Dependant on model selected
MEASURED PARAMETERS
Active Energy (kWh)Line Power Factor (PF)
Active Power (W)Line Reactive Power (kVAr)
Apparent Energy (kVAh)Line to Line Voltage (V)
Apparent Power (VA)Line to Neutral Voltage (V)
Average Current (I)Maximum Current (I)
Average Power Demands (W)Maximum Power Demands (W)
Average Voltage (V)Maximum Voltage (V)
Current (I)Power Factor (PF)
Current in Neutral (I)Reactive Energy (kVArh)
Frequency (Hz)Reactive Power (VAr)
Hours Run (hr)Total Harmonic Distortion (Amps)
Line Active Power (W)Total Harmonic Distortion (Volts)
Line Apparent Power (kVA)Voltage (V)
