Our three phase high accuracy metering kits are built for fast and easy installation providing everything required to complete the job.
What's included?
A set of 3 Class 0.2S Solid Core CT’s is required in addition to this kit and the meter will be programmed to match the appropriate ratio prior to dispatch.

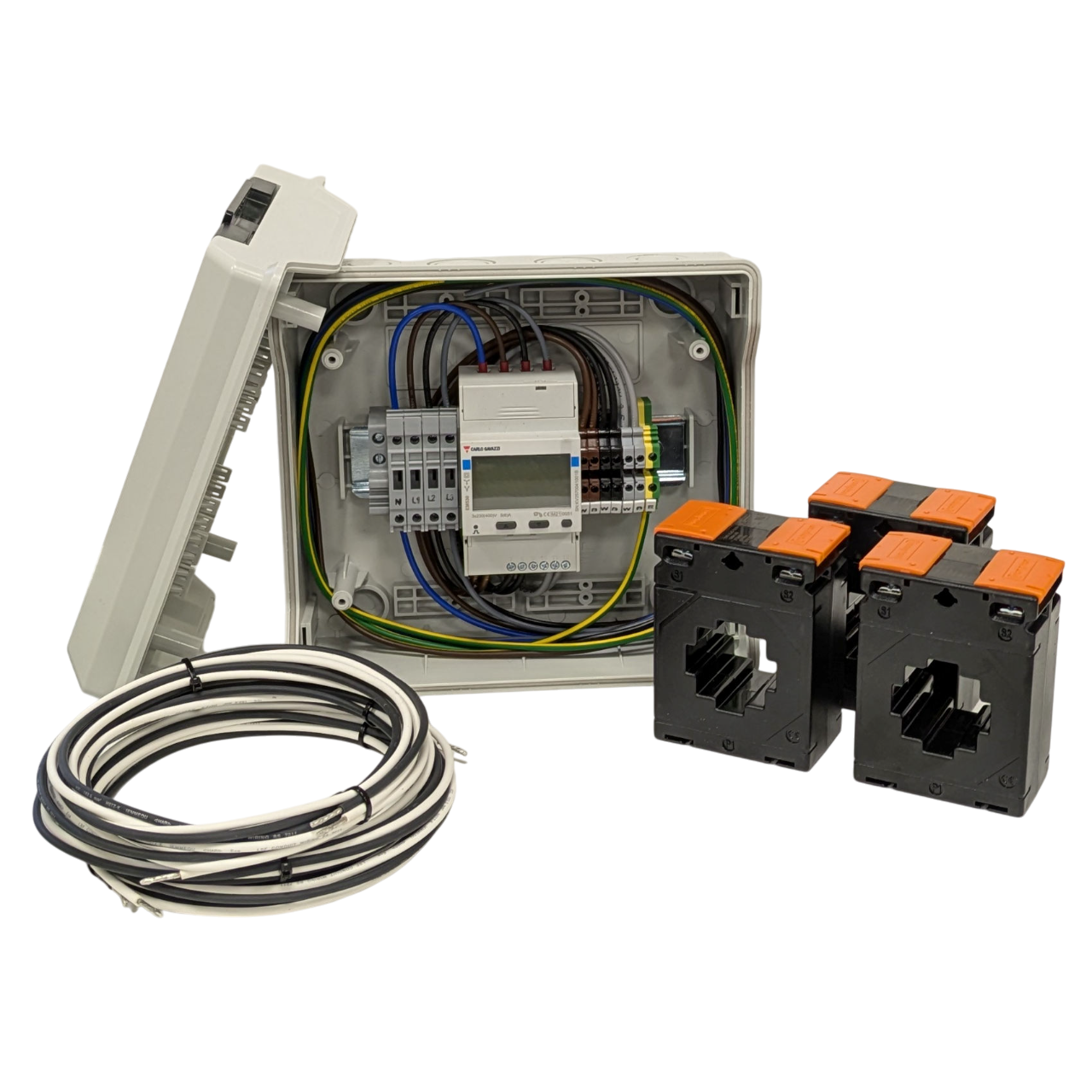

Our three phase high accuracy metering kit is built for applications where the highest level of precision is required. We’ve selected three class C (Cl. 0.5) meters offering a range of features from simple pulse outputs to remote access to readings via ethernet. These are paired with a set of 3 class 0.2S current transformers with ratios available from 100/5A to 1000/5A and the meter is pre-programmed to match the required ratio.
The kits offer fast and easy installation with our meter engineers pre-fitting the required CT links, voltage reference and earthing with clear labelling. 1m of cable for the earth and voltage references is pre-wired into the enclosure and we supply 1m of CT wire to connect the CT’s.
Can’t find a meter or CT to suit your requirements, contact our friendly sales teams who will be happy to put together a bespoke quotation.

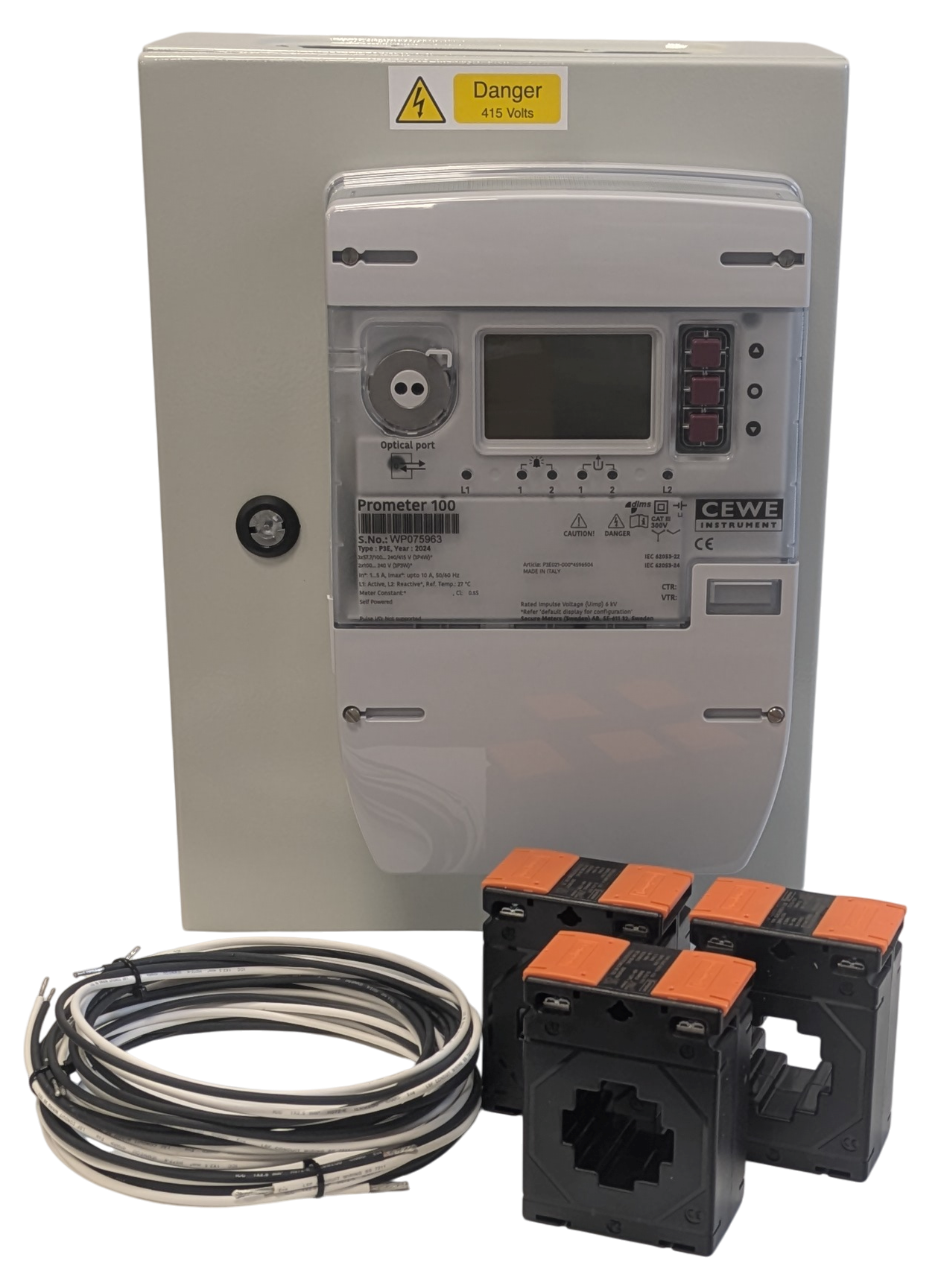

| Carlo Gavazzi EM530 | Socomec Countis E48 | Carlo Gavazzi WM20 | CEWE Secure Prometer 100 | |
| MID Approved | Yes | Yes | No | Yes |
| Output Type | Modbus | Ethernet | Modbus / BACnet / Profibus * | Pulse / Modbus * |
| Tariffs | Single | Multi | Dual ** | Multi |
| Import / Export | Import & Export | Import & Export | Import & Export | Import & Export |
| Accuracy | C (Cl. 0.5) | C (Cl. 0.5) | C (Cl. 0.5) | Class 0.5S |
| Availability | Special Order | Special Order | Special Order | Special Order |
| Summary Sheet | Download | Download | Download | Download |
* Available as optional add on module
** Controlled externally with time switch, available separately
Our three phase high accuracy metering kit is built for applications where the highest level of precision is required. We’ve selected three class C (Cl. 0.5) meters offering a range of features from simple pulse outputs to remote access to readings via ethernet. These are paired with a set of 3 class 0.2S current transformers with ratios available from 100/5A to 1000/5A and the meter is pre-programmed to match the required ratio.
The kits offer fast and easy installation with our meter engineers pre-fitting the required CT links, voltage reference and earthing with clear labelling. 1m of cable for the earth and voltage references is pre-wired into the enclosure and we supply 1m of CT wire to connect the CT’s.
Can’t find a meter or CT to suit your requirements, contact our friendly sales teams who will be happy to put together a bespoke quotation.
| Carlo Gavazzi EM530 | Socomec Countis E48 | Carlo Gavazzi WM20 | CEWE Secure Prometer 100 | |
| MID Approved | Yes | Yes | No | Yes |
| Output Type | Modbus | Ethernet | Modbus / BACnet / Profibus * | Pulse / Modbus * |
| Tariffs | Single | Multi | Dual ** | Multi |
| Import / Export | Import & Export | Import & Export | Import & Export | Import & Export |
| Accuracy | C (Cl. 0.5) | C (Cl. 0.5) | C (Cl. 0.5) | Class 0.5S |
| Availability | Special Order | Special Order | Special Order | Special Order |
| Summary Sheet | Download | Download | Download | Download |
* Available as optional add on module
** Controlled externally with time switch, available separately
