ND Metering Solutions - Cube 300

by: ND Metering Solutions

Product Code: TPPND300

Availability: Next Day Special Order

Download Summary Sheet

Quick overview

The Cube 300 is a simple CT operated, panel mounted electricity meter and can be supplied with either a Pulse or Modbus Output. It's a standard 96x96mm, and the simple display on the meter shows Power (W) and Energy (kWh) to an accuracy better than class 1.

Optional Extras

The ND Metering Solutions series of meters are the only range on the market that are manufactured in the UK and come with a 5-year warranty.

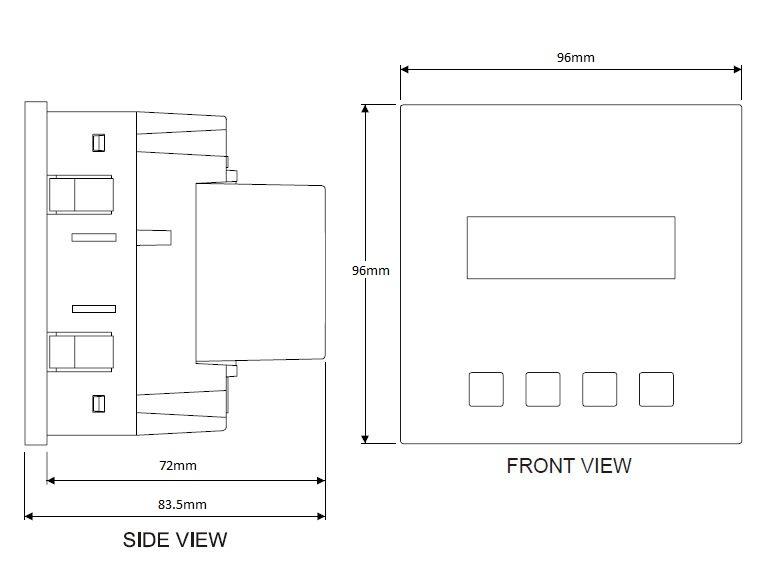

The Cube 300 is a 96x96mm, CT operated, Panel Mounted electricity meter and can be supplied with either a Pulse or Modbus Output. The volt free kWh Pulse Output has a configurable duration and rate.

The simple display on the meter shows Power (W) and Energy (kWh) to an accuracy better than class 1.

CUBE 300 VARIANTS

SPW Part CodeManufacturer Part CodeDescription
TPPND300C30/5A/230
Pulse Output
TPPND300MC30MOD/5A/230
Modbus Output
Meter TypeThree Phase
Fitting TypePanel Mounted
Max Current (amps)5
MID ApprovedNo
SmartNo
Input TypeCurrent Transformer
Output TypePulse / Modbus *
TariffsSingle
Import / ExportImport Only
Fuse Type (CT)1A Fast Blow
Fuse Type (Auxiliary)0.1A Fast Blow
AvailabilityNext Day *
BrandND Metering Solutions
Country of ManufactureUK
MEASURED PARAMETERS
Active Energy (kWh)Line Power Factor (PF)
Active Power (W)Line Reactive Power (kVAr)
Apparent Energy (kVAh)Line to Line Voltage (V)
Apparent Power (VA)Line to Neutral Voltage (V)
Average Current (I)Maximum Current (I)
Average Power Demands (W)Maximum Power Demands (W)
Average Voltage (V)Maximum Voltage (V)
Current (I)Power Factor (PF)
Current in Neutral (I)Reactive Energy (kVArh)
Frequency (Hz)Reactive Power (VAr)
Hours Run (hr)Total Harmonic Distortion (Amps)
Line Active Power (W)Total Harmonic Distortion (Volts)
Line Apparent Power (kVA)Voltage (V)
Line Current (I)

* Dependant on model selected
