• Three Phase DIN Rail Metering Kit

Three Phase DIN Rail Metering Kit

by: S P Wales

Product Code: MKDIN

Availability: Next Day Special Order

Download Summary Sheet

Quick overview

Our three phase metering kits are built for fast and easy installation and are ideal for retrofit applications.

What's included?

  • 1 x 3-Phase DIN Rail Meter (select requirements below)
  • 1 x ABB Mistral 12 Module Enclosure
  • 3 x Split Core CT (select ratio & aperture below)
  • CT links, voltage reference and earthing terminals
  • 1m of 1.5mm stranded blue, brown, black & grey cable
  • 1m of 2.5mm stranded earth cable

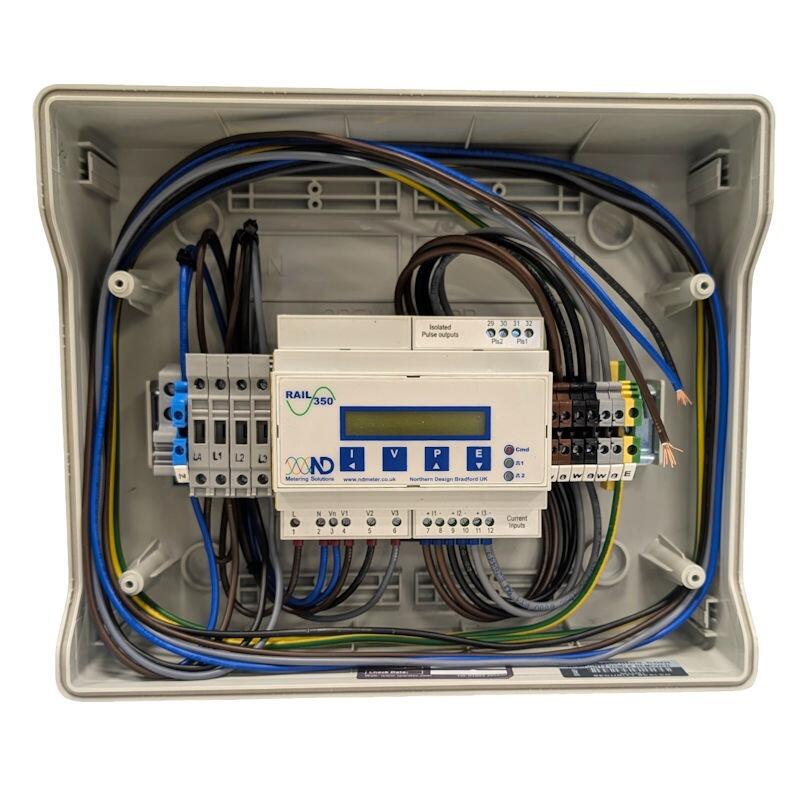

Our three phase DIN rail metering kit is built for fast and easy installation and is ideal for retrofit applications.  The compact enclosure has cable entry points on either side and our meter engineers pre-fit the required CT links, voltage reference and earthing with clear labelling. It comes complete with split core CT’s that simply clip around the supplies, saving time and disruption.

This kit is available with one of four meters offering a range of features from simple pulse outputs to remote access to readings via ethernet, (full details in the product specification tab below).  You can also select CT’s appropriate for your circuit with 24mm & 36mm apertures available covering loads of 100A to 400A.  Can’t find a meter or CT to suit your requirements, contact our friendly sales teams who will be happy to put together a bespoke quotation.

Our pre-wired enclosures are built to order and are typically available in 2-3 days, however in times of high demand, this lead time may increase. Please contact us for more information.

Power Supply
Three Phase

ND Metering Solutions - Rail 350Crompton - Ri3Eastron - SDM630CTSocomec - E48
MID Approved
NoNoYesYes
Output Type
PulseRS485 Modbus & PulseRS485 Modbus & Pulse
Ethernet
TariffsSingleSingle
SingleMulti Tariff
Import / ExportImport OnlyImport & Export
Import & ExportImport & Export
Availability
Special Order *

* Our pre-wired enclosures are built to order and are generally available in 2-3 days, however in times of high demand, this lead time may increase. Please contact us for more information.
