Product Code: SPDVO11M
Availability: Next Day Special Order

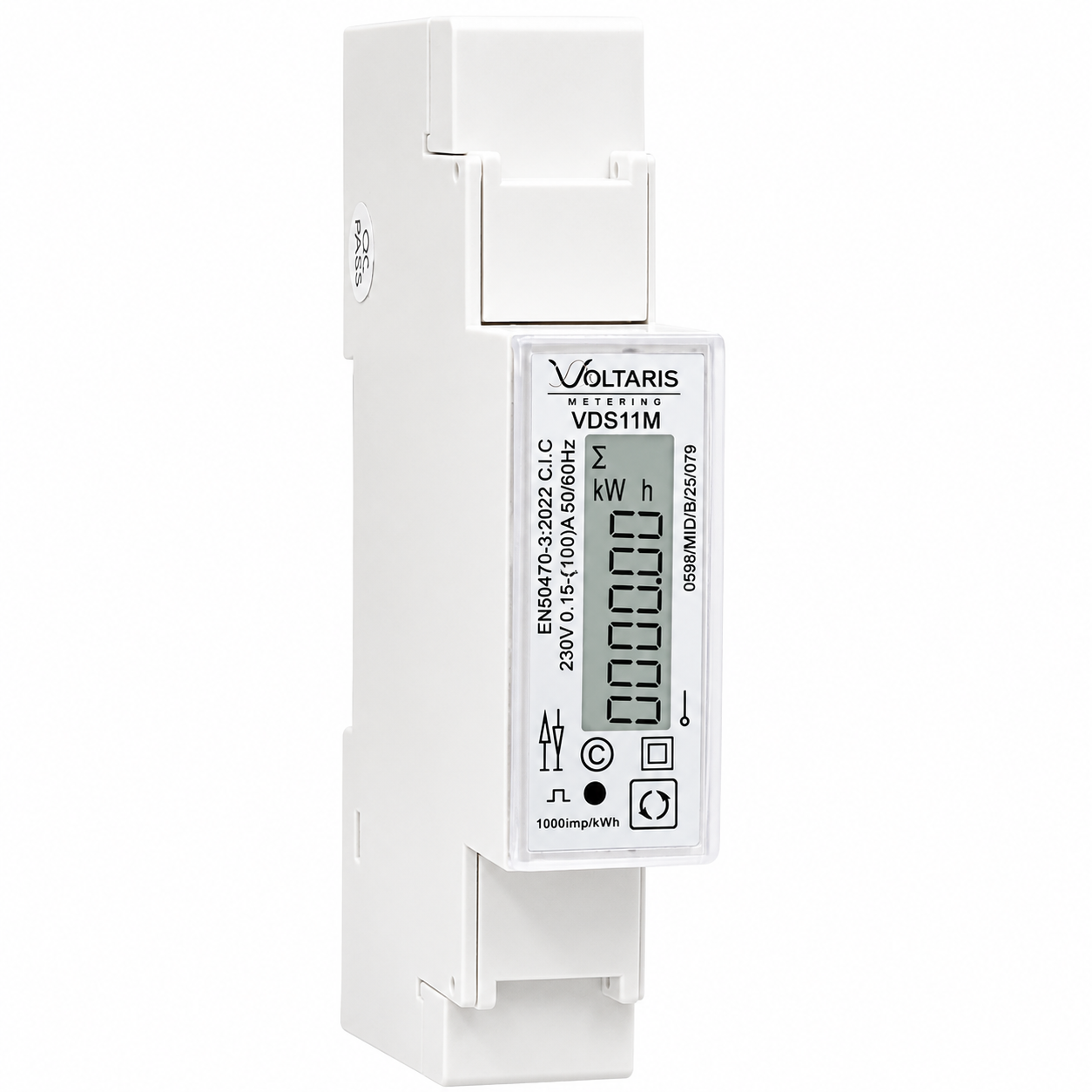

The VDS11M from Voltaris Metering is a single phase, 100A DIN Rail meter housed in a compact one module case. This feature rich energy meter can measure Imported & Exported Active Energy (kWh) and Reactive Energy (kVArh) as well as a host of other common parameters, including Current (I), Active Power (W), Frequency (Hz) and Voltage (V).

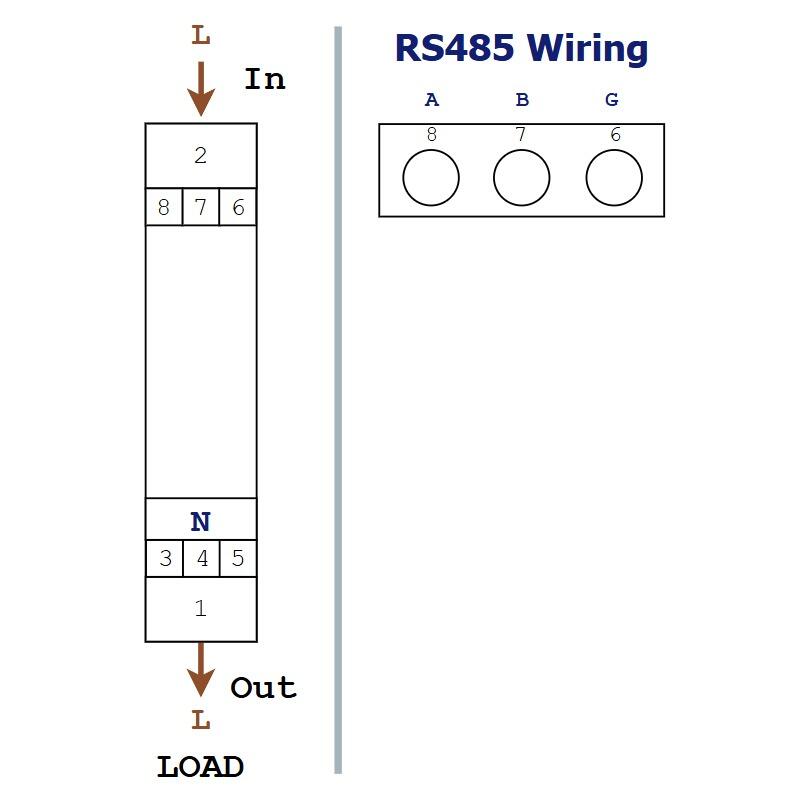

This highly accurate meter, (Class C (±0.5%)), is MID approved, making it suitable for billing applications. It features a back lit display for easy reading, and a single touch button can be used to scroll through parameters and to change settings. It supports RS485 Modbus communication, making it suitable for integration into compatible dataloggers or building management systems.
| Meter Type | Single Phase | ||
| Fitting Type | DIN Rail | ||
| Max Current (amps) | 100 | ||
| MID Approved | Yes | ||
| Input Type | Direct Connect | ||
| Output Type | Modbus | ||
| Smart | No | ||
| Tariffs | Single | ||
| Import / Export | Import & Export | ||
| Accuracy class | C (Cl. 0.5) | ||
| Max. Cable Size | 25mm² | ||

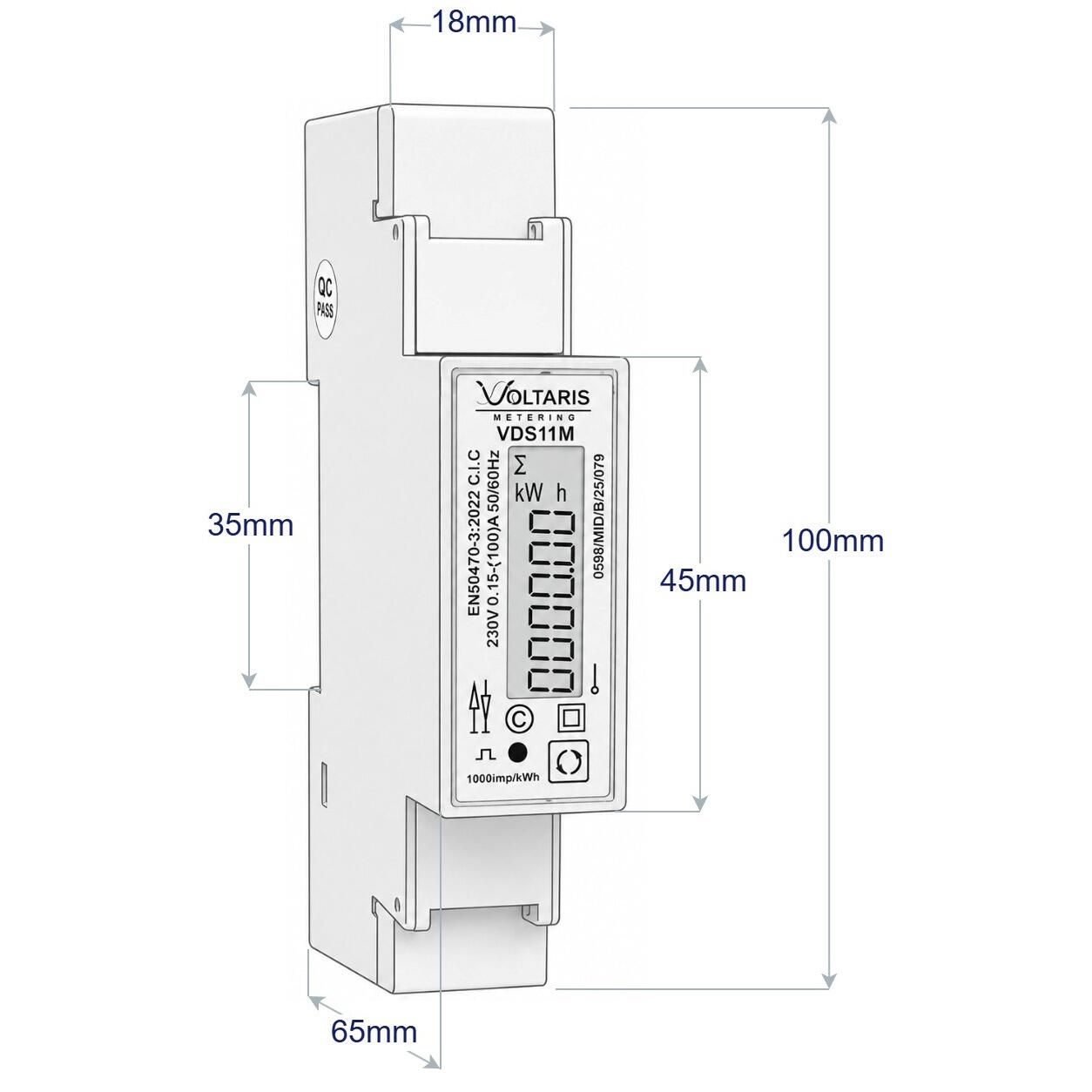

| Module Width | 1 | ||
| Availability | Next Day | ||
| Brand | Voltaris | ||
| Country of Manufacture | China | ||
| MEASURED PARAMETERS | |||
| Active Energy (kWh) | Frequency (Hz) | ||
| Active Power (W) | Hours Run (hr) | ||
| Apparent Energy (kVAh) | Maximum Current (I) | ||
| Apparent Power (VA) | Maximum Power Demands (W) | ||
| Average Current (I) | Maximum Voltage (V) | ||
| Average Power Demands (W) | Power Factor (PF) | ||
| Average Voltage (V) | Reactive Energy (kVArh) | ||
| Current (I) | Reactive Power (VAr) | ||
| Current in Neutral (I) | Voltage (V) | ||
| Meter Type | Single Phase | ||
| Fitting Type | DIN Rail | ||
| Max Current (amps) | 100 | ||
| MID Approved | Yes | ||
| Input Type | Direct Connect | ||
| Output Type | Modbus | ||
| Smart | No | ||
| Tariffs | Single | ||
| Import / Export | Import & Export | ||
| Accuracy class | C (Cl. 0.5) | ||
| Max. Cable Size | 25mm² | ||
| Module Width | 1 | ||
| Availability | Next Day | ||
| Brand | Voltaris | ||
| Country of Manufacture | China | ||
| MEASURED PARAMETERS | |||
| Active Energy (kWh) | Frequency (Hz) | ||
| Active Power (W) | Hours Run (hr) | ||
| Apparent Energy (kVAh) | Maximum Current (I) | ||
| Apparent Power (VA) | Maximum Power Demands (W) | ||
| Average Current (I) | Maximum Voltage (V) | ||
| Average Power Demands (W) | Power Factor (PF) | ||
| Average Voltage (V) | Reactive Energy (kVArh) | ||
| Current (I) | Reactive Power (VAr) | ||
| Current in Neutral (I) | Voltage (V) | ||
