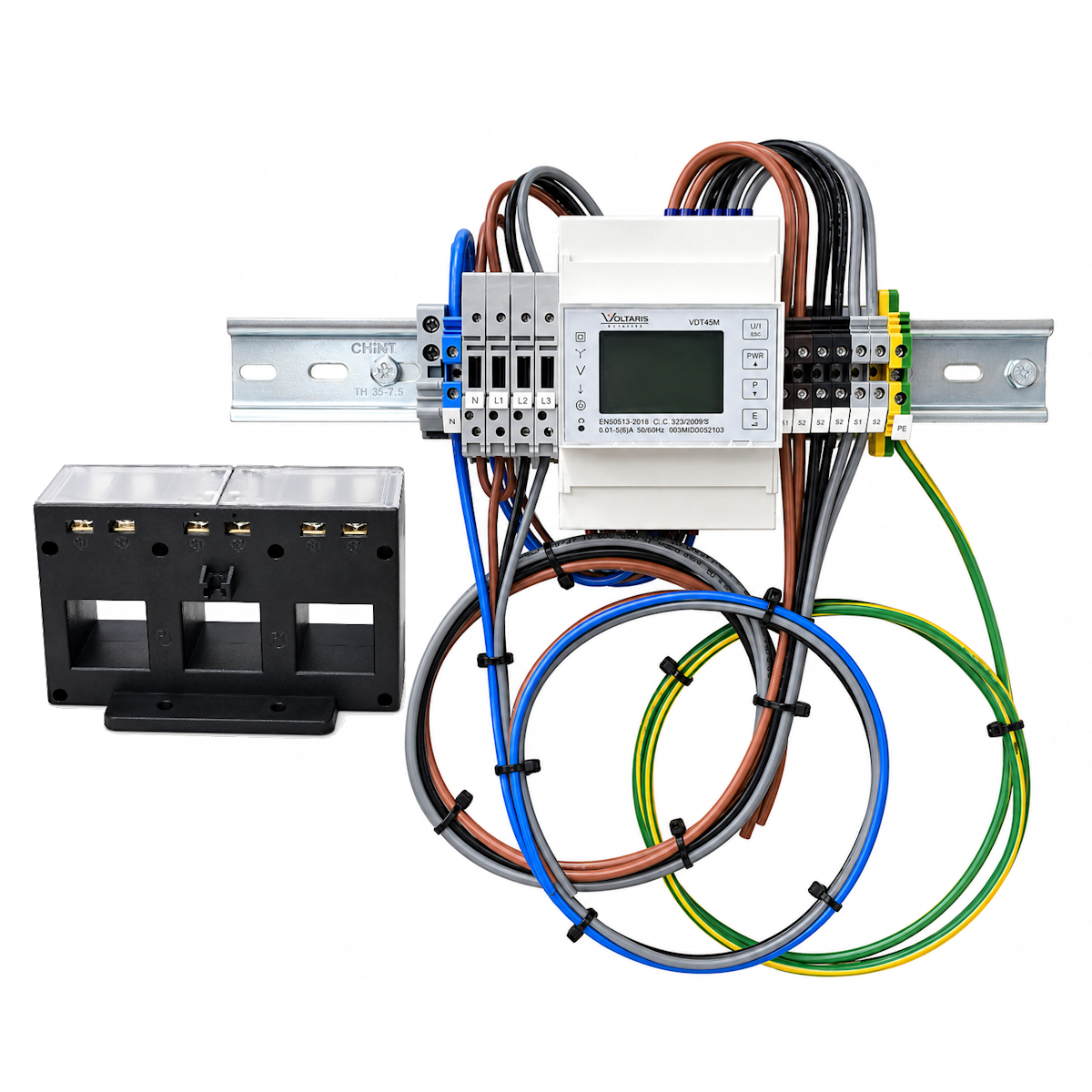

Universal Meter Pack for 3-Phase Distribution Boards
Universal Meter Pack for 3-Phase Distribution Boards

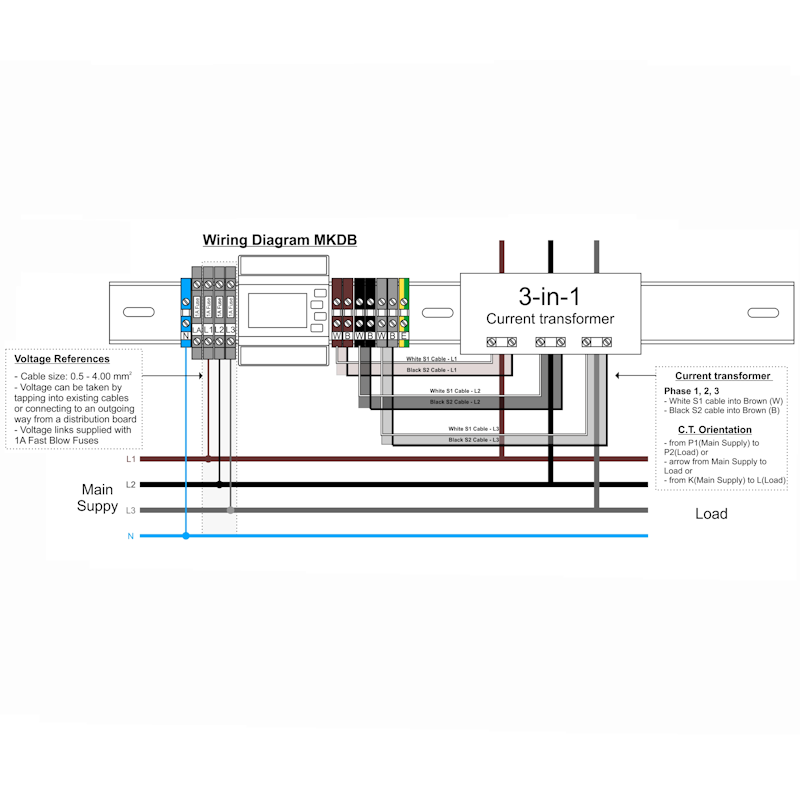

Universal Meter Pack for 3-Phase Distribution Boards - Wiring

Universal Meter Pack for 3-Phase Distribution Boards

by: S P Wales

Product Code: MKDB##-3CT###TP##

Availability: Next Day Special Order

Download Summary Sheet

Quick overview

Designed to fit within compatible distribution boards or extension boxes, our meter packs include everything required for monitoring the incoming supply of a newly installed DB.

Built for flexibility, the range offers a selection of meters, each of which can be paired with a 3-in-1 CT to match to maximum load of the board.

For incompatible boards, the kit can be supplied in an IP66 DIN rail enclosure to fit alongside the board.



Quantity:
From: £0.00 From: £280.00

inc VAT

ADD TO FAVOURITES

REQUEST A QUOTATION

Features

  • Flexible fitting options to fit most boards.
  • Choice of meters with a range of popular features.
  • All meters are MID approved.
  • Flexible CT fitting options, (DIN rail or foot mount)

What's included?

  • 1 x 3-Phase DIN Rail Meter (see options below)
  • CT links, voltage references and earthing terminal
  • 1m of 1.5mm blue, brown, black & grey voltage cable
  • 1m of 2.5mm earth cable
  • 1 x 3-in-1 Current Transformer
  • 1m of CT wire
  • 1 x 22cm and 1 x 20cm length of DIN rail
  • 4 x bolts, 4 x self-tapping screws & 6 x nuts, (for fixing DIN rails)
  • 6 x blue pin crimps (CT’s), 4 x red pin crimps (voltage cables) & 1 x yellow ring crimp (earth)
  • 2 x end stops (to secure CT onto DIN rail)


Meter


Voltaris VDT45MSocomec - E48
MID ApprovedYesYes
Output TypeRS485 Modbus & PulseEthernet
TariffsSingleMulti Tariff
Import / ExportImport & ExportImport & Export
AccuracyC (Cl. 0.5)C (Cl. 0.5)
AvailabilityNext Working Day2-3 Days
Part CodeMKDBVOMKDBSO
Summary SheetDownloadDownload

Current Transformer

SupplyPart Code
125ACT125TP35
250ACT250TP35
400ACT400TP45
630ACT630TP45
