by: S P Wales
Product Code: MK####R
Availability: Next Day Special Order
Our three phase metering kits are built for fast and easy installation and are ideal for retrofit applications.
What's included?

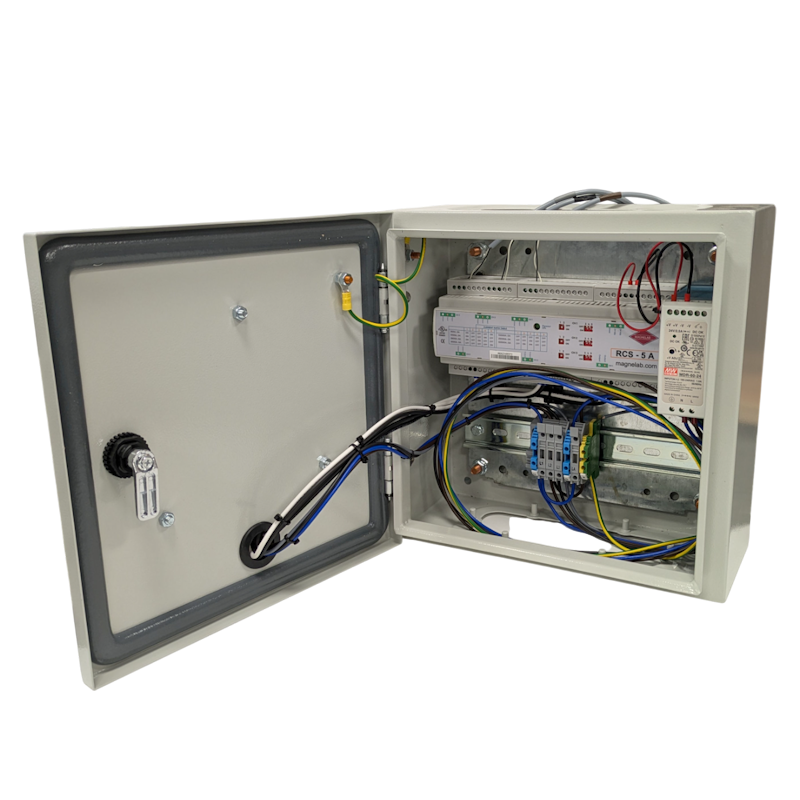

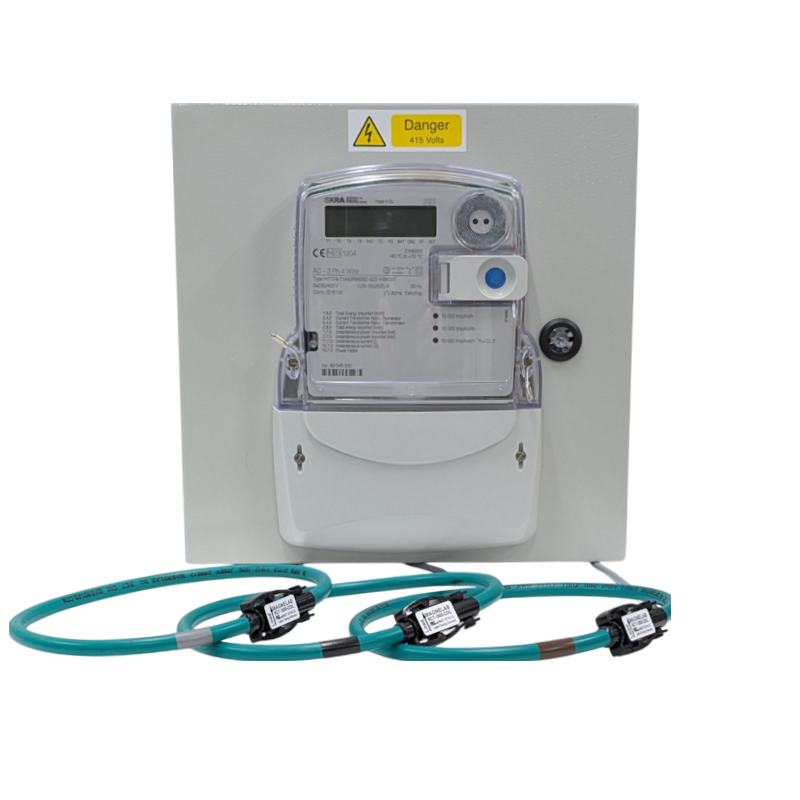

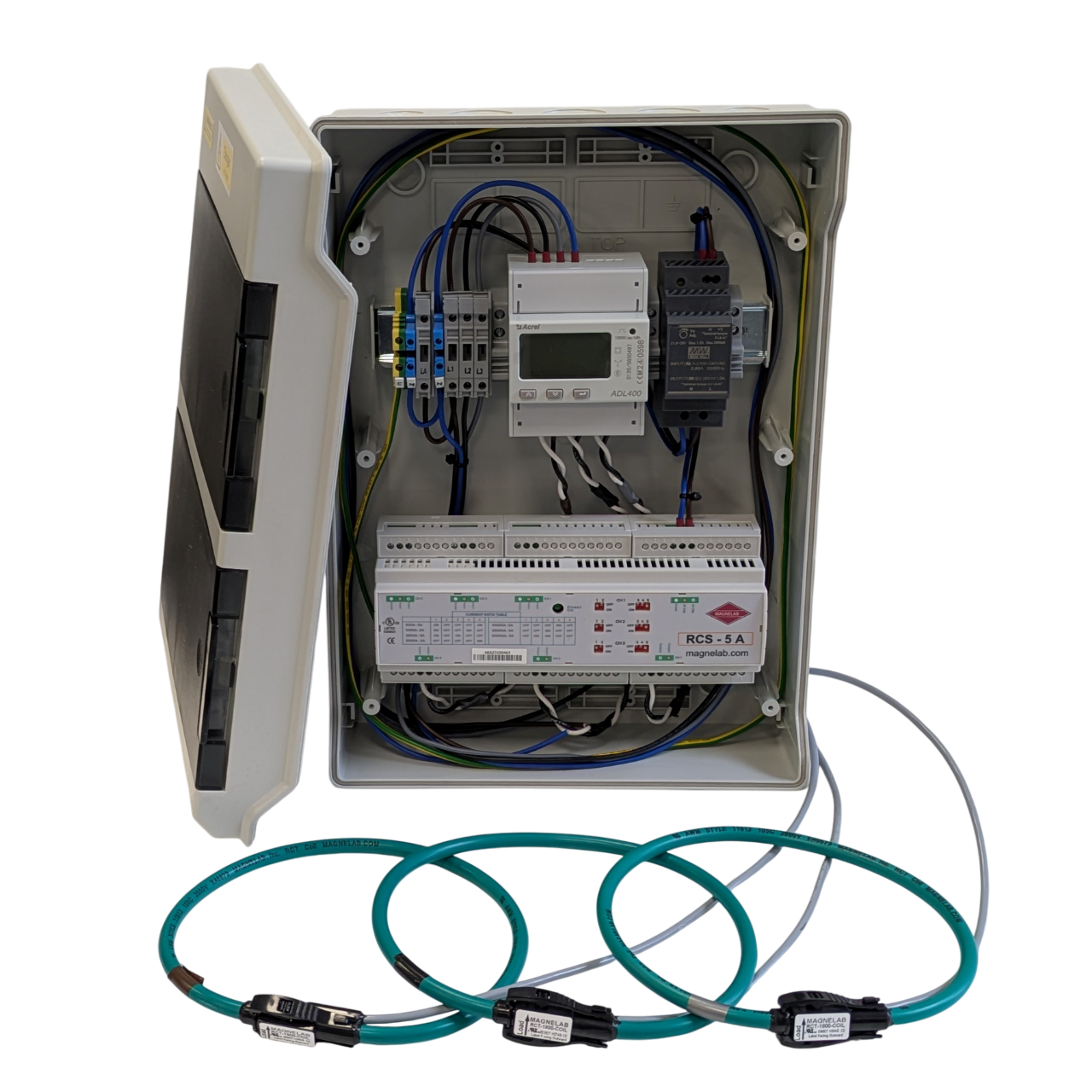

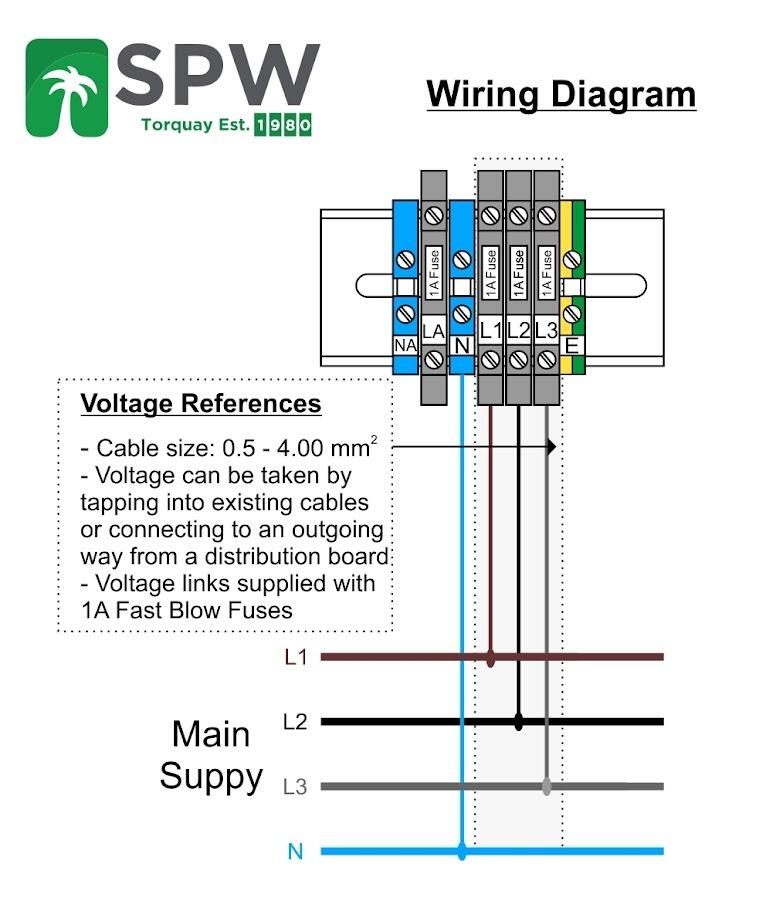

Our three phase metering kits with the innovative Magnelab 5A Rogowski Coils are built for fast and easy installation and are ideal for retrofit applications. Our meter engineers pre-fit the required voltage reference and earthing with clear labelling and the flexible coils are pre-wired into the enclosure complete with 2.2m fly leads. The kit can be set to support loads from 500A through to 50,000A and the required ratio will be set on the integrator prior to dispatch.
This kit is available with one of three meters offering a range of features including pulse or Modbus outputs, dual tariffs or class C (Cl. 0.5) accuracy. All meters are MID approved making them suitable for billing applications.
Can’t find a meter or CT to suit your requirements, contact our friendly sales teams who will be happy to put together a bespoke quotation.
| Acrel ADL400-CT | Iskra MT174-T1 | Eastron X96-5E | |
| MID Approved | Yes | Yes | Yes |
| Output Type | RS485 Modbus & Pulse | Pulse | RS485 Modbus & Pulse |
| Tariffs | Single | Single / Dual / Multiple * | Single |
| Import / Export | Import & Export | Import & Export | Import & Export |
| Accuracy | C (Cl. 0.5) | B (Cl. 1) | B (Cl. 1) |
| Enclosure | IP66 24 Mod. DIN Rail Enclosure | Steel Enclosure (300x300mm) | Steel Enclosure (300x300mm) |
| Availability | Special Order | Special Order | Special Order |
| Summary Sheet | Download | Download | Download |
Our three phase metering kits with the innovative Magnelab 5A Rogowski Coils are built for fast and easy installation and are ideal for retrofit applications. Our meter engineers pre-fit the required voltage reference and earthing with clear labelling and the flexible coils are pre-wired into the enclosure complete with 2.2m fly leads. The kit can be set to support loads from 500A through to 50,000A and the required ratio will be set on the integrator prior to dispatch.
This kit is available with one of three meters offering a range of features including pulse or Modbus outputs, dual tariffs or class C (Cl. 0.5) accuracy. All meters are MID approved making them suitable for billing applications.
Can’t find a meter or CT to suit your requirements, contact our friendly sales teams who will be happy to put together a bespoke quotation.
| Acrel ADL400-CT | Iskra MT174-T1 | Eastron X96-5E | |
| MID Approved | Yes | Yes | Yes |
| Output Type | RS485 Modbus & Pulse | Pulse | RS485 Modbus & Pulse |
| Tariffs | Single | Single / Dual / Multiple * | Single |
| Import / Export | Import & Export | Import & Export | Import & Export |
| Accuracy | C (Cl. 0.5) | B (Cl. 1) | B (Cl. 1) |
| Enclosure | IP66 24 Mod. DIN Rail Enclosure | Steel Enclosure (300x300mm) | Steel Enclosure (300x300mm) |
| Availability | Special Order | Special Order | Special Order |
| Summary Sheet | Download | Download | Download |
