• Carlo Gavazzi - EM530

Carlo Gavazzi - EM530

by: Carlo Gavazzi

Product Code: TPDCGEM530OX

Availability: Enquire Below

Download Summary Sheet

Quick overview

The Carlo Gavazzi EM530 is a compact 5A CT Operated, DIN Rail mounted electricity meter.  It can be supplied with either Pulse, Modbus or Mbus outputs and is available with or without MID certification, (required if being used for a billing application).

The EM530 energy analyzer is a versatile solution for monitoring two and three phase systems up to 415V L-L. Its features include enhanced readability with a backlit display, intuitive browsing through a user-friendly interface, and quick configuration using a startup wizard. The unit complies with precision standards and offers fiscal metrology capabilities, thanks to sliding terminal caps that prevent tampering. Flexible installation options cover various low-voltage system configurations. With an operating temperature range up to 70°C (158°F), the EM530 is a reliable choice for accurate energy measurement.

This meter, when supplied with a Modbus output, is perfectly suited for integration with the Carlo Gavazzi's remote energy management tool, the UWP.


SPW Part CodeManufacturer Part CodeDescription
TPDCGEM530OXEM530DINAV53HO1X
Pulse Output
TPDCGEM530SX
EM530DINAV53HS1X
Modbus Output
TPDCGEM530MX
EM530DINAV53HM1X
Mbus Output
TPDCGEM530OP
EM530DINAV53HO1PFB
Pulse Output & MID
TPDCGEM530SP
EM530DINAV53HS1PFB
Modbus Output & MID
TPDCGEM530MP
EM530DINAV53HM1PFB
Mbus Output & MID
Meter TypeThree Phase
Fitting TypeDIN Rail
Max Current (amps)5
MID ApprovedYes / No *
SmartNo
Input TypeCurrent Transformer
Output TypeModbus / Mbus / Pulse *
TariffsDual (controlled externally)
Import / ExportImport & Export
Accuracy class
C (Cl.0.5)

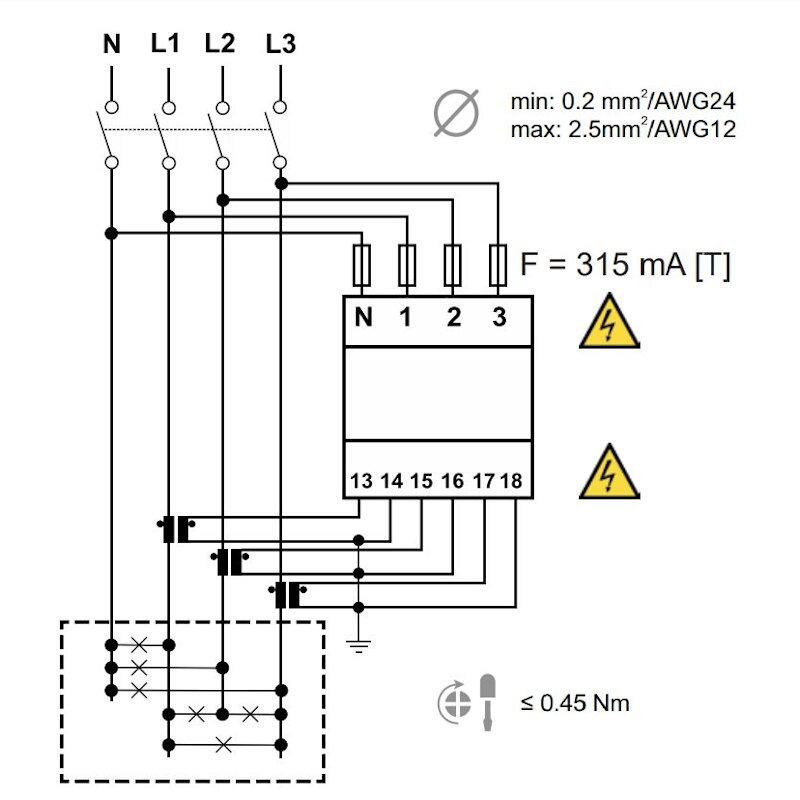

Fuse Type (Voltage Reference)315 mA
Fuse Type (Auxiliary)n/a
Module Width3
AvailabilityNext Day *
MEASURED PARAMETERS
Active Energy (kWh)Line Power Factor (PF)
Active Power (W)Line Reactive Power (kVAr)
Apparent Energy (kVAh)Line to Line Voltage (V)
Apparent Power (VA)Line to Neutral Voltage (V)
Average Current (I)Maximum Current (I)
Average Power Demands (W)Maximum Power Demands (W)
Average Voltage (V)Maximum Voltage (V)
Current (I)Power Factor (PF)
Current in Neutral (I)Reactive Energy (kVArh)
Frequency (Hz)Reactive Power (VAr)
Hours Run (hr)Total Harmonic Distortion (Amps)
Line Active Power (W)Total Harmonic Distortion (Volts)
Line Apparent Power (kVA)Voltage (V)
Line Current (I)

* Dependant on model selected
