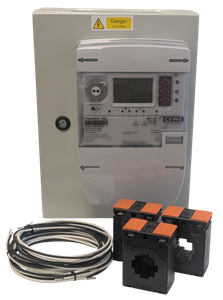

The Prometer 100 is an advanced next-generation energy meter, specifically designed for power transfer points that require precise measurements and revenue transactions. Its flexible and modular communications ensure seamless integration with AMR, AMI, and SCADA systems, as well as the ability to upgrade to future sub-station automation systems. One of its key features is the capability for 4 quadrant energy measurement, which allows for comprehensive monitoring of generation, transmission, and distribution loads.
This meter is suitable for a wide range of applications, including power plants, feeder monitoring, grid substations, wind turbines, renewable energy sources, and industrial or commercial premises. It offers high accuracy with 0.2S/0.5S precision for both active and reactive measurements. Additionally, the Prometer 100 includes power quality features such as total harmonic distortion (THD), sag, swell, voltage unbalance, and interruption recording.
We can also create custom configurations for the CEWE Secure Prometer displaying specific parameters or custom tariff times for example. Simply email your requirements to sales@spwales.com and one of friendly sales team will get in touch to confirm your price.
| Meter Type | Three Phase | ||
| Fitting Type | Wall Mounted | ||
| Max Current (amps) | 5A | ||
| MID Approved | Yes | ||
| Input Type | CT Operated | ||
| Output Type | Pulse & Modbus | ||
| Smart | No | ||
| Tariffs | Single / Dual / Multiple * | ||
| Import / Export | Import & Export | ||
| Accuracy class | Class C (Cl. 0.5) or (Cl. 0.2)** | ||
| Fuse Type (Auxiliary) | N/A | ||
| Fuse Type (Voltage Ref.) | 1A Fast Blow | ||
| Availability | Next Day** | ||
| Brand | CEWE Secure | ||
| Country of Manufacture | Sweden | ||
| MEASURED PARAMETERS | |||
| Active Energy (kWh) | Line Power Factor (PF) | ||
| Active Power (W) * | Line Reactive Power (kVAr) * | ||
| Apparent Energy (kVAh) * | Line to Line Voltage (V) | ||
| Apparent Power (VA) * | Line to Neutral Voltage (V) * | ||
| Average Current (I) | Maximum Current (I) * | ||
| Average Power Demands (W) | Maximum Power Demands (W) * | ||
| Average Voltage (V) | Maximum Voltage (V) * | ||
| Current (I) | Power Factor (PF) * | ||
| Current in Neutral (I) | Reactive Energy (kVArh) * | ||
| Frequency (Hz) * | Reactive Power (VAr) * | ||
| Hours Run (hr) | Total Harmonic Distortion (Amps) | ||
| Line Active Power (W) * | Total Harmonic Distortion (Volts)* | ||
| Line Apparent Power (kVA)* | Voltage (V) | ||
| Line Current (I) * | |||
| * These parameters can be pre-programmed on to the meter as an optional extra. | |||
This meter is suitable for a wide range of applications, including power plants, feeder monitoring, grid substations, wind turbines, renewable energy sources, and industrial or commercial premises. It offers high accuracy with 0.2S/0.5S precision for both active and reactive measurements. Additionally, the Prometer 100 includes power quality features such as total harmonic distortion (THD), sag, swell, voltage unbalance, and interruption recording.
We can also create custom configurations for the CEWE Secure Prometer displaying specific parameters or custom tariff times for example. Simply email your requirements to sales@spwales.com and one of friendly sales team will get in touch to confirm your price.
| Meter Type | Three Phase | ||
| Fitting Type | Wall Mounted | ||
| Max Current (amps) | 5A | ||
| MID Approved | Yes | ||
| Input Type | CT Operated | ||
| Output Type | Pulse & Modbus | ||
| Smart | No | ||
| Tariffs | Single / Dual / Multiple * | ||
| Import / Export | Import & Export | ||
| Accuracy class | Class C (Cl. 0.5) or (Cl. 0.2)** | ||
| Fuse Type (Auxiliary) | N/A | ||
| Fuse Type (Voltage Ref.) | 1A Fast Blow | ||
| Availability | Next Day** | ||
| Brand | CEWE Secure | ||
| Country of Manufacture | Sweden | ||
| MEASURED PARAMETERS | |||
| Active Energy (kWh) | Line Power Factor (PF) | ||
| Active Power (W) * | Line Reactive Power (kVAr) * | ||
| Apparent Energy (kVAh) * | Line to Line Voltage (V) | ||
| Apparent Power (VA) * | Line to Neutral Voltage (V) * | ||
| Average Current (I) | Maximum Current (I) * | ||
| Average Power Demands (W) | Maximum Power Demands (W) * | ||
| Average Voltage (V) | Maximum Voltage (V) * | ||
| Current (I) | Power Factor (PF) * | ||
| Current in Neutral (I) | Reactive Energy (kVArh) * | ||
| Frequency (Hz) * | Reactive Power (VAr) * | ||
| Hours Run (hr) | Total Harmonic Distortion (Amps) | ||
| Line Active Power (W) * | Total Harmonic Distortion (Volts)* | ||
| Line Apparent Power (kVA)* | Voltage (V) | ||
| Line Current (I) * | |||
| * These parameters can be pre-programmed on to the meter as an optional extra. | |||
