Product Code: TPDVO41M
Availability: Next Day Special Order

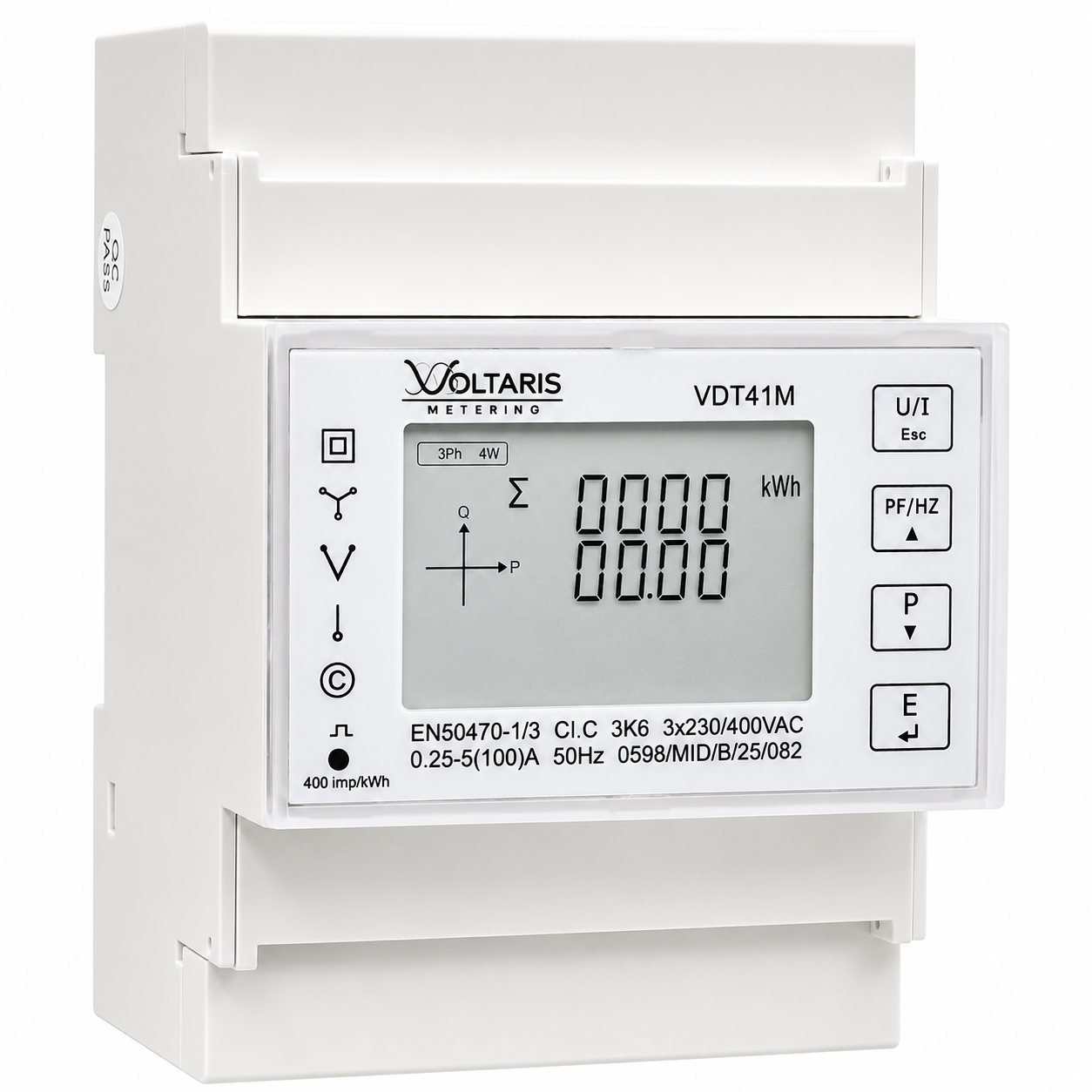

The VDT41M from Voltaris Metering is a three phase, 100A DIN Rail energy meter. This feature rich model can measure Imported & Exported Active Energy (kWh) and Reactive Energy (kVArh) as well as a host of other common parameters, including Current (I), Active Power (W), Frequency (Hz) and Voltage (V).

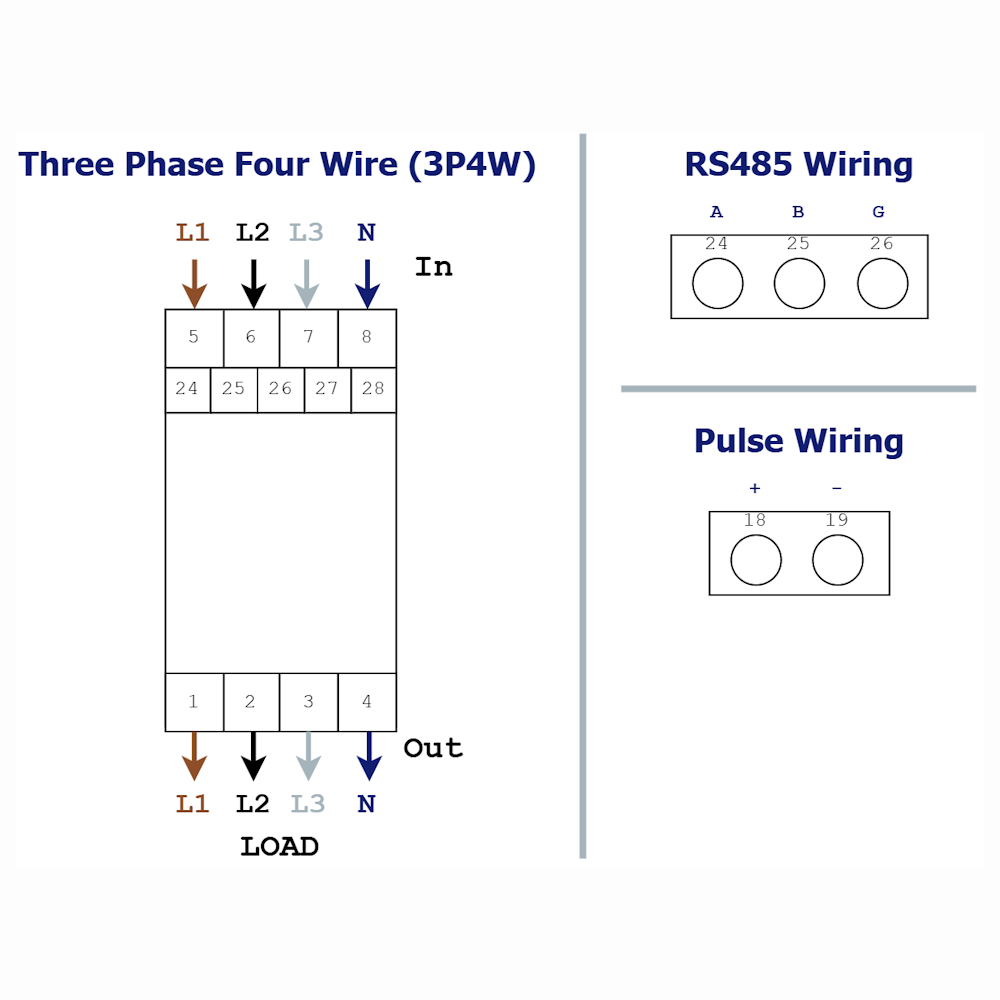

This highly accurate meter, (Class C (±0.5%)), is MID approved, making it suitable for billing applications. It features a back lit display for easy reading, and the four touch buttons can be used to scroll through parameters and to change settings. It offers a configurable pulse output as well as RS485 Modbus communication, making it suitable for integration into compatible dataloggers or building management systems.
| Meter Type | Three Phase | ||
| Fitting Type | DIN Rail | ||
| Max Current (amps) | 100 | ||
| MID Approved | Yes | ||
| Input Type | Direct Connect | ||
| Output Type | Modbus & Pulse | ||
| Smart | No | ||
| Tariffs | Single | ||
| Import / Export | Import & Export | ||
| Accuracy Class | C (Cl. 0.5) | ||

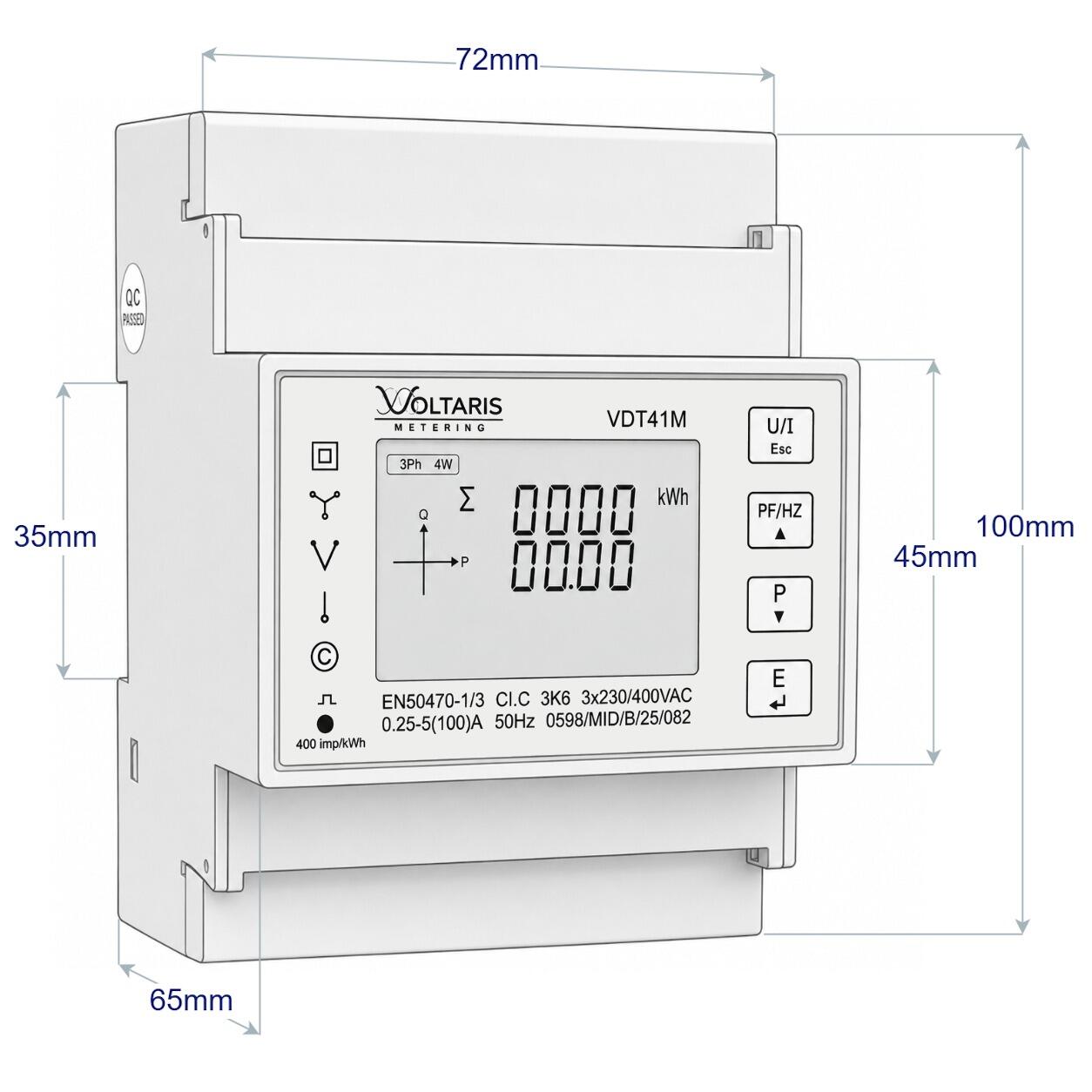

| Module Width | 4 | ||
| Availability | Next Day | ||
| Brand | Voltaris Metering | ||
| Country of Manufacture | China | ||
| MEASURED PARAMETERS | |||
| Active Energy (kWh) | Line Power Factor (PF) | ||
| Active Power (W) | Line Reactive Power (kVAr) | ||
| Apparent Energy (kVAh) | Line to Line Voltage (V) | ||
| Apparent Power (VA) | Line to Neutral Voltage (V) | ||
| Average Current (I) | Maximum Current (I) | ||
| Average Power Demands (W) | Maximum Power Demands (W) | ||
| Average Voltage (V) | Maximum Voltage (V) | ||
| Current (I) | Power Factor (PF) | ||
| Current in Neutral (I) | Reactive Energy (kVArh) | ||
| Frequency (Hz) | Reactive Power (VAr) | ||
| Hours Run (hr) | Total Harmonic Distortion (Amps) | ||
| Line Active Power (W) | Total Harmonic Distortion (Volts) | ||
| Line Apparent Power (kVA) | Voltage (V) | ||
| Line Current (I) | |||
| Meter Type | Three Phase | ||
| Fitting Type | DIN Rail | ||
| Max Current (amps) | 100 | ||
| MID Approved | Yes | ||
| Input Type | Direct Connect | ||
| Output Type | Modbus & Pulse | ||
| Smart | No | ||
| Tariffs | Single | ||
| Import / Export | Import & Export | ||
| Accuracy Class | C (Cl. 0.5) | ||
| Module Width | 4 | ||
| Availability | Next Day | ||
| Brand | Voltaris Metering | ||
| Country of Manufacture | China | ||
| MEASURED PARAMETERS | |||
| Active Energy (kWh) | Line Power Factor (PF) | ||
| Active Power (W) | Line Reactive Power (kVAr) | ||
| Apparent Energy (kVAh) | Line to Line Voltage (V) | ||
| Apparent Power (VA) | Line to Neutral Voltage (V) | ||
| Average Current (I) | Maximum Current (I) | ||
| Average Power Demands (W) | Maximum Power Demands (W) | ||
| Average Voltage (V) | Maximum Voltage (V) | ||
| Current (I) | Power Factor (PF) | ||
| Current in Neutral (I) | Reactive Energy (kVArh) | ||
| Frequency (Hz) | Reactive Power (VAr) | ||
| Hours Run (hr) | Total Harmonic Distortion (Amps) | ||
| Line Active Power (W) | Total Harmonic Distortion (Volts) | ||
| Line Apparent Power (kVA) | Voltage (V) | ||
| Line Current (I) | |||
